Basic Info.
Model NO.
0.75KWPE215 rigid electric unit
Number of Stator
Single-Phase
Function
Driving, Control
Casing Protection
Open Type
Number of Poles
2
Starting Mode
Variable Frequency Starting
Certification
CCC, CE
Brand
Powever
Warranty
1 Year
Rated Output Power
0.75kw
Rated Torque
2.86nm
Motor IP Grade
IP54
Power Supply
1n ~ AC200-240V
Rated Speed
2500 Rpm
Ambient Humidity
30%-85%, No Condensation
Limit Mode
Absolute Encoder, Proximity Switch
Self Locking Mode
Electro Mechanical Brake
Manual Release
Handle
Power Frequency
50/60Hz
Installation Method
Vertical Installation Without Vibration
Place of Use
Indoor, No Direct Sunlight, No Dust, Corrosive Gas
Transport Package
Carton Packing
Specification
535 x 270 x 250 mm
Trademark
POWEVER
Origin
China
HS Code
8479899990
Production Capacity
1000000/Year
Packaging & Delivery
Package Size
53.50cm * 27.00cm * 25.00cm
Package Gross Weight
11.500kg
Product Description

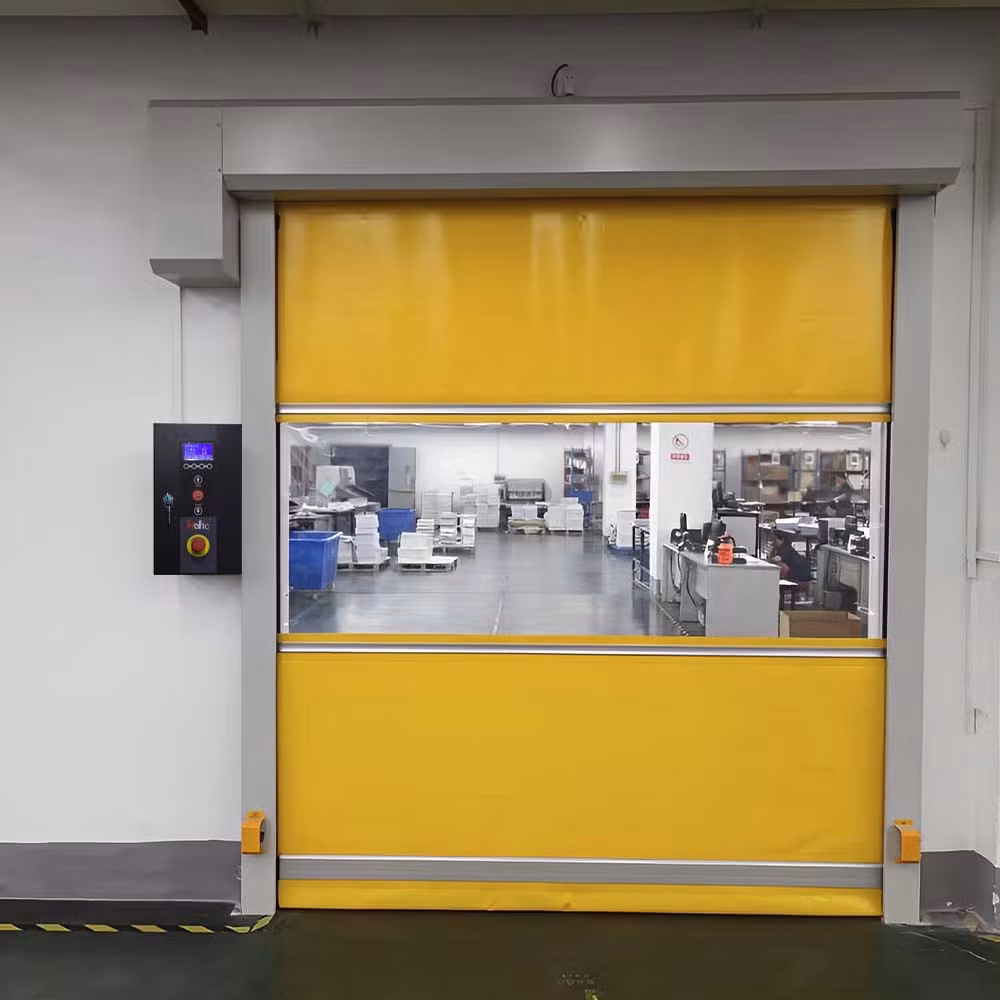

Introducing a revolutionary solution crafted specifically for Industrial Sectional Door control. This 1 Year Warranty Fast Door Servo Motor is the epitome of plug-and-play convenience, delivering unmatched stability with its intuitive control interface. Its robust and versatile design simplifies debugging and maintenance, ensuring seamless operation. Boasting high torque and swift operating speeds, this motor is engineered for silence, reliability, and smooth transitions, making it exceptional for high-speed, high-strength environments.
Operating Speed: Ranging from 0.5 m/s to an impressive 1.5 m/s Operating Width: <16 m/30 m/60 mDaily operating time: 2000 timesRated voltage: 220 VRated output: 0.75 KW/1.5 KW.Brake included, built-in encoder, motor cable included.When the temperature is below -10ºC or above 40ºC, the system needs to be derated.
Securely packaged in a durable Polywood box, ensuring safe transit and delivery.
Prior to any connection to a live line, it is imperative to ensure the power is turned off. Confirm the power supply voltage in the primary circuit matches the rated voltage of the controller in use. The grounding terminal must be correctly and reliably connected to the grounding wire to prevent hazards. Avoid direct contact with output terminals and refrain from opening them or the housing. Be aware that after power disconnection, high voltage may remain in the circuit until the LCD powers down. Handle with extreme care, avoiding contact with internal wiring and electronic components which are highly sensitive to static electricity. Protect the motor driver and control panel's main circuit from any object contact.

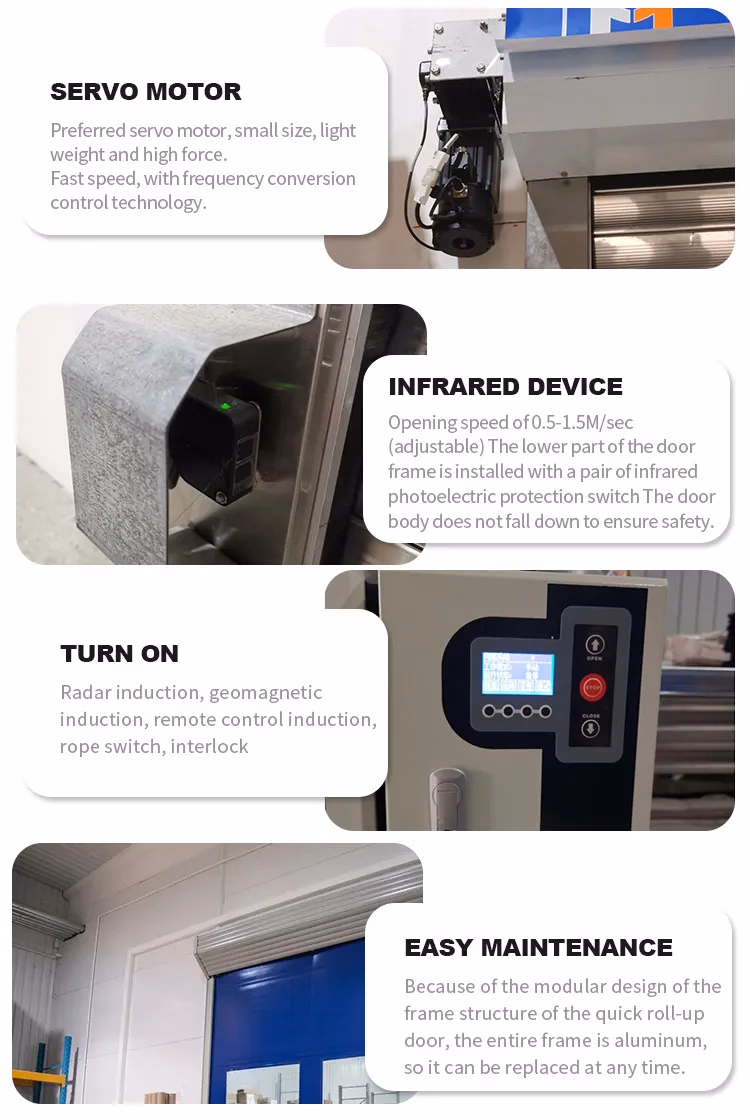

Experience unprecedented precision with our fully closed-loop servo system, offering exact control of position, speed, and torque. Our high-precision electronic limiters ensure flawless operation over extended periods, while our integrated design features EMC electromagnetic compatibility. Real-time monitoring of motor output data allows for comprehensive assessment of balance systems and quick identification of jamming points. With adjustable speeds, flexible operation is at your fingertips. The lifting door system reaches a rated output speed of 40 RPM and a maximum lifting speed of 0.4 M/s, ensuring smooth, shake-free functionality that extends the mechanical structure's lifespan. Equipped with advanced protection methods, it responds to emergency signals in under 30 milliseconds, safeguarding both people and objects. Perfect for environments demanding rapid, frequent passage. Utilizing rare earth permanent magnets, our servo motors deliver double the efficiency of traditional motors, optimizing energy use, reducing weight, and minimizing temperature increase.
Q1 What is your MOQ?
A. No limit. Accept order >1set
Q2 What is the delivery time?
A. About 15-30 days
Q3 What about your package?
A. Polywood box
Q4 How can I know the price exactly?
A. Please give the exact size and quantity of your required door. We can give you a detailed quotation based on your requirements.
Q5. Do you produce other products? What about your export experience?
Re. We produce sectional garage door, industrial door, roll shutter door, high speed door, hangar door etc.
