A2 series soft fast door servo system PE 200B / 0.
Number of Stator
Single-Phase
Function
Control
Casing Protection
Open Type
Number of Poles
2
Certification
CCC, CE
Brand
Powever
Installation Method
Vertical Installation Without Vibration
Power Supply
1n~200-240 V
Ambient Humidity
30%-85%, No Condensation
Place of Use
Indoor, No Direct Sunlight, No Dust, Corrosive Gas
Limit Mode
Absolute Encoder, Proximity Switch
Self Locking Mode
Electro Mechanical Brake
Manual Release
Handle
Transport Package
Packed in Wooden Cases and Cartons
Specification
440x110x180mm
Trademark
POWEVER
Origin
China Wuhan
HS Code
8479899990
Production Capacity
10000
Product Description
Control Box: The essential heartbeat of your automation system, ensuring seamless and efficient operation. Configuration Model: A2 Series PE200B - Precision engineered for peak performance.
Configuration Power: 0.75KW Soft Fast - Dynamically powering your rapid door automation with finesse.
Display Screen: LCD Screen (Chinese and English) - User-friendly and bilingual for versatile application.
Motor Group: The driving force behind your high-speed automation, crafted for excellence. Configuration Model: A2 Series PE200B - A model of innovation and reliability.
Working Power: 220V ± 10% - Reliable power supply for consistent performance.
Shielded Wire Length: 4M - Ensuring the security and integrity of your connections.

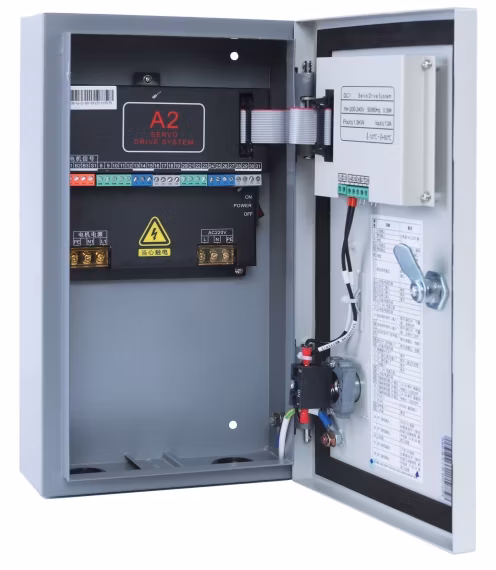

1. A2 Control Box Dimension Line Diagram: A visual blueprint for precision installation.

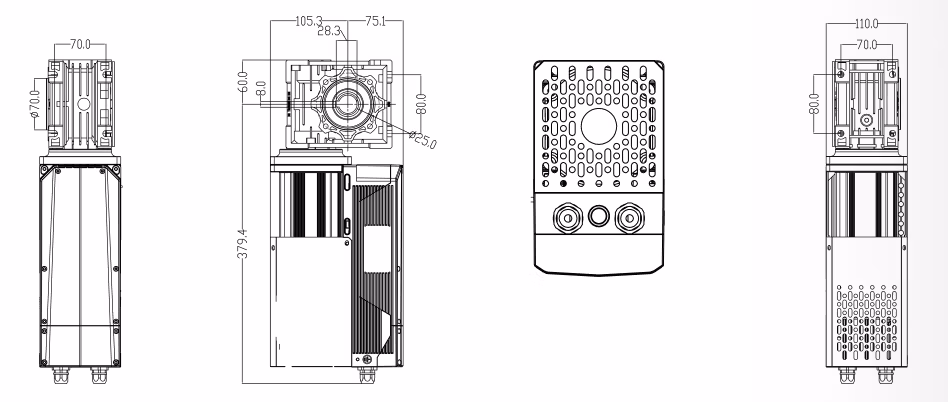

2. Drawing of A2 Motor Group Dimension Line: Detailed schematics for flawless integration.
3. A2 Series Specification/Applicable Guidance: Comprehensive guidance for optimizing use and application.
| Basic parameters PE200B | ||
| Power | 750W | |
| Power supply | 220V ± 10% | |
| Control box size | 340*195*95(125)(including emergency stop) | |
| Motor size | 440*110*180 | |
| Reducer | Worm Gear Reducer (RV50) | |
| Motor working | S3 working system | |
| Motor IP grade | IP54 | |
| Standard shielded wire length | 4m | |
| Rated working environment temperature | -10C-40C | |
| Maximum operating ambient temperature | -25C-60°C | |
| Limit | proximity switch + built-in absolute encoder | |
| Self-locking | electro-mechanical brake | |
| Maximum number of operations per day | 800 | |
| Control Panel Features | ||
| LCD | Display (Chinese and English) | |
| Door opening speed setting | stepless speed regulation | |
| Door closing speed setting | stepless speed regulation | |
| Opening deceleration interval setting | | |
| Closing deceleration interval setting | | |
| Automatic door closing delay time (seconds) | 0-240(0: Prohibit automatic door closing) | |
| Partial opening height (%) | Any height within limit | |
| Operation status display selection | | |
| Control Panel Extensions | ||
| Fault | tips in Chinese and English | |
| Data statistics | | |
| Historical Fault Query | | |
| Maintenance Reminder | | |
| jog mode | | |
| Reverse motor operation | | |
| Interface logic switching (NC/NO) | | |
| Low temperature antifreeze jitter function | | |
| Moment follow-up function | | |
| Control box interface | ||
| Networking communication physical interface | RS485 | |
| Safety protection signal 1 input | Emergency stop action | |
| Safety protection signal 2 input | reverse door opening action | |
| Automatic full door opening signal input | | |
| Partial door opening signal input | | |
| Single key cycle switch | | |
| Door opening limit (origin) switch input | | |
| Door Close Limit Switch Input | | |
| Interlock input | | |
| Programmable relay output | 2 groups | |
| Manual/automatic switching input | | |
| Emergency stop input | | |
| Can support limit type | motor built-in incremental encoder | |
| External absolute encoder | ||
| Mechanical limit | ||
| Proximity switch | ||
| Reducer ratio | 10 | 15 | 20 |
| Output torque (Nm) | 18 | 27 | 35 |
| Output Speed (RPM) | 250 | 166 | 125 |
| Motor power (KW) | 0.75KW | ||
| Motor Power | Reducer ratio | applicable area 114 drum | applicable weight 114 drum | Applicable area 140 drum | applicable weight 140 drum |
750W | 1:15 | Within12 | within 48KG | Within10 | within 30KG |
| 1:20 | Within14 | within 56KG | Within12 | Within45KG | |
| 1:25 | Within16 | within 64KG | Within14 | Within 55KG |
A2 / 0.75KW Control Box: Synonymous with power and precision for your automated solutions.
