Basic Info.
Model NO.
80ST-M03520
Function
Control
Casing Protection
Protection Type
Number of Poles
8
Starting Mode
Variable Frequency Starting
Certification
ISO9001, CCC
Brand
Mige
Protect Feature
Totally Enclosed
Usage
Universal
Warranty
3years
Phase
Three-Phase
Shape
Square
Holding Torque(N.M)
3.5
Type
Servo Motor
Efficiency
Ie 3
Frequency
50-60Hz
Structure
Synchronous Motor
Rated Power(W)
730
AC Voltage
208-230 / 240 V
Power
AC
Transport Package
Packed in Plywood Case or Carton
Specification
80mm
Trademark
MiGe
Origin
Zhejiang, China
HS Code
85015200
Production Capacity
50000 PCS/ Year
Packaging & Delivery
Package Size
26.00cm * 24.00cm * 20.00cm
Package Gross Weight
3.500kg
Lead Time
5 days (1 - 10 Pieces)
To be negotiated ( > 10 Pieces)
To be negotiated ( > 10 Pieces)
Product Description
small electric motor 220v 730W single phase CNC machine Mige servo motor
Product Description.
Specifications(80 series servo motor)
| Motor model | 80ST-M03520 |
| Rated power(W) | 730 |
| Rated voltage(V) | 220 |
| Rated current(A) | 3 |
| Rated speed(rpm) | 2000 |
| Holding torque(N.m) | 3.5 |
| Peak torque(N.m) | 10.5 |
| Voltage constant(V/krpm) | 9 |
| Torque coefficient(N.m/A) | 1.17 |
| Rotor inertia(Kg.m2) | 2.63×10-4 |
| Phase Resistance(Ω) | 3.65 |
| Phase Inductance(mH) | 8.8 |
| Machanical time-constant(Ms) | 2.4 |
| Weight(Kg) | 3.9 |
| Encoder line number(PPR) | 2500 |
| Insulation class | Class F |
| Safety class | IP65 |
| The operating of Environmental Conditions | Temperature: -20 ~ +50 Celsius degree Humidity: Below 90%RH No dewing |
Installation Dimension:unit=mm
| Model | Without brake | With permanent Magnet brake | With eletromagntic brake |
| 80ST-M01330 | 124 | 178 | 164 |
| 80ST-M02430 | 151 | 205 | 191 |
| 80ST-M03520 | 179 | 233 | 219 |
| 80ST-M04025 | 191 | 245 | 231 |

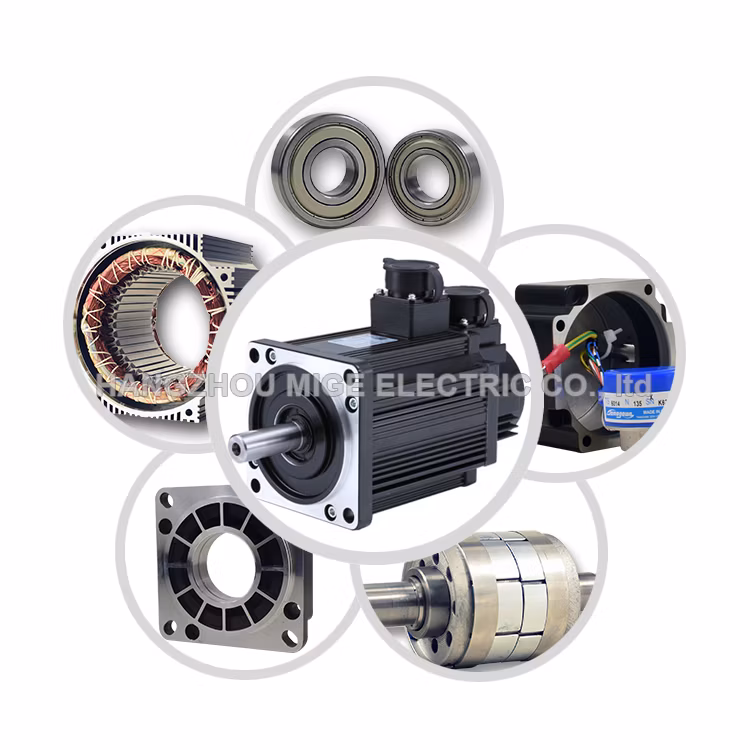

Production Process
Certifications

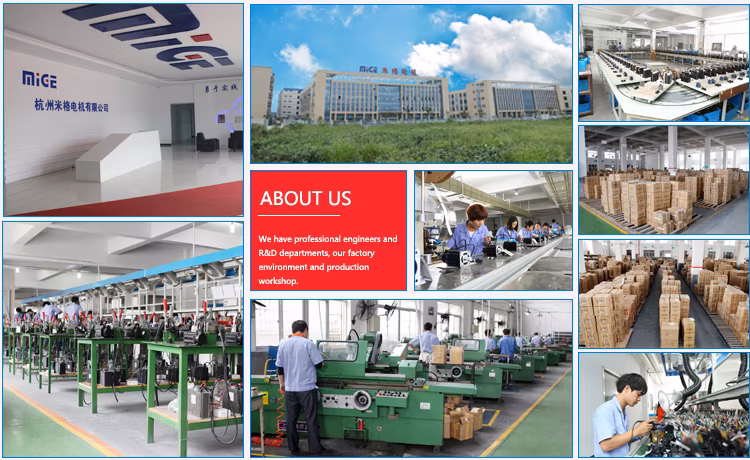

Company Information
